Enhanced Reality System
Digital video recorder and video switching unitThe challenge
Our solution
The Enhanced Reality System provides state-of-the-art features to improve mission operations. The system combines all major functions required for camera operations in one box and offers a very powerful mission system for any airborne sensing platform. The ERS processes up to 4 video streams, generates vector overlays and offers recording and communication features.

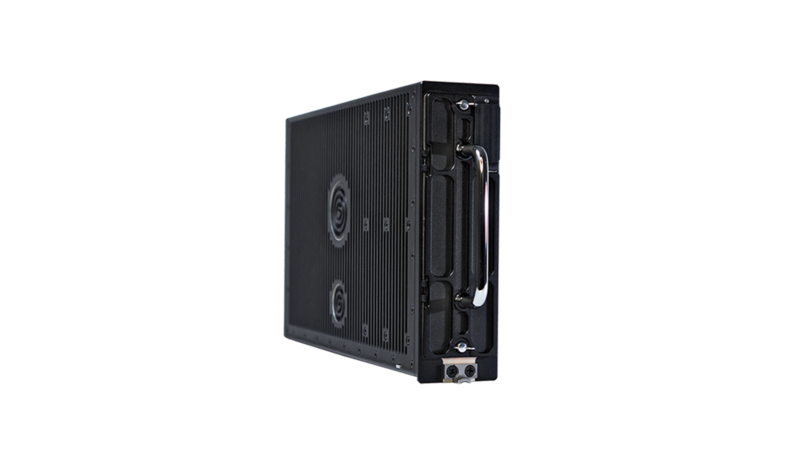

The RE1 is the central part of the Enhanced Reality System, providing the graphic and data interfaces as well as drive slots for solid state drives (SSDs). The combination of enhanced reality, video processing and distribution, and digital video recording in one single avionics qualified LRU is unique. The RE1 is a compact, lightweight and energy-efficient avionics computer; saving on LRU cost, weight, space, cables, and power consumption.
Additionally, the RE1 has an integrated WLAN chip that allows to perform remote wireless maintenance or uploads and download of map data, flight trace data, screenshots or videos. The internal LTE (4G) Module grants fast access to the internet of which a connected EuroNav 7 can also make use of.
Features and benefits
Features
- Vector data on real-time camera feeds
- Virtual view (3D synthetic image)
- Various screen modes to display a single video source up to multiple video sources simultaneously
- Time Shift Function
- Camera Brush Function
- Highly configurable graphics engine
- Multi-Core CPU
- LTE (4G) / WLAN
- Multiple interfaces
- Obsolescence management in place
Benefits
- “One-box” solution for EO/IR operators
- Reliable, high-end performance during camera operations
- Video and audio recording in Full (1080p) HD
- Possibility to add Moving Target Indication, LTE and Router functionality due to modular design
- Interfacing to a wide variety of control devices (keyboards, cursor control devices (CCD’s), display line select keys (LSK’s), touch screens or the ERS control panel)
